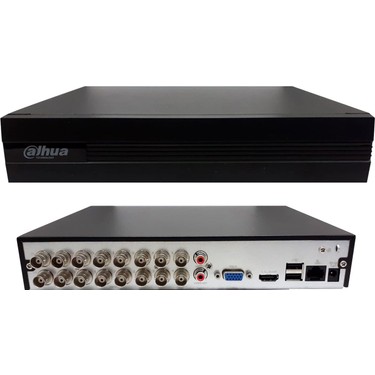

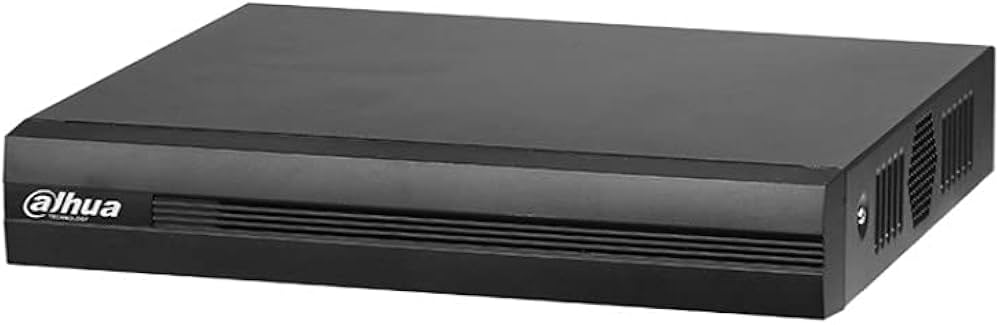

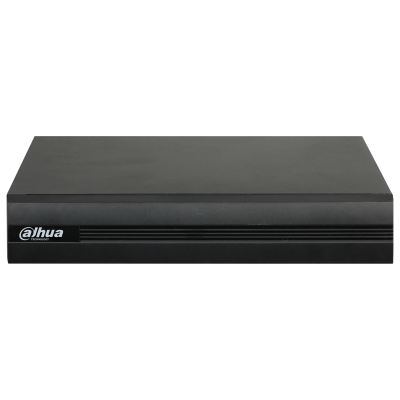

Dahua XVR1B16-I 16CH Penta-brid DVR with AI Smart Motion Detection – WizSense Series

Key Features

• 16-Channel Penta-brid DVR
  Supports HDCVI, AHD, TVI, CVBS, and IP cameras

• Up to 18 Channels Total (16 BNC + 2 IP channels)
  Up to 6MP resolution IP input

• AI Features – WizSense Series

  • SMD Plus (Smart Motion Detection) – Up to 8 Channels

  • Perimeter Protection – Up to 8 Channels

  • Face Detection/Recognition – Up to 2 Channels

• Video Compression: H.265+/H.265 dual-stream

• Storage: 1 SATA port, up to 6TB HDD supported

• Audio: 1 RCA in, 1 RCA out

• Network: 1 RJ45 (100Mbps), supports mobile monitoring via iOS/Android

• USB: 2 x USB2.0

• Dimensions: 260 × 231 × 48 mm

• Weight: Approx. 0.89 kg (without HDD)

 Ideal For:

• Small to medium business surveillance setups

• Upgrading existing analog CCTV systems to smart AI-driven detection

• Multi-site monitoring when used with Dahua’s cloud or mobile apps

What’s in the Box

• Dahua XVR1B16-I DVR unit

• Power Adapter (DC 12V)

• USB Mouse

• User Manual & Quick Start Guide

• Mounting Accessories (e.g., screws)
