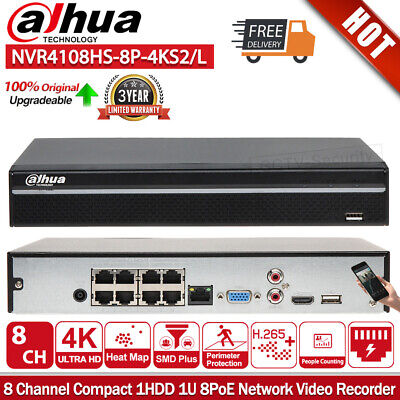

NVR4108HS-8P-4KS2: 8-channel NVR with 8 PoE ports and 4K resolution support.

Key Features

• 8-Channel IP Video Input: Supports up to 8 IP cameras with resolutions up to 8MP.​

• Integrated 8-Port PoE: Simplifies installation by providing power and data through a single cable for each camera.​

• Advanced Video Compression: Utilizes Smart H.265+, H.265, Smart H.264+, and H.264 codecs for efficient storage and bandwidth usage.​

• AI by Camera: Supports face detection, perimeter protection, people counting, heat map, and SMD (Smart Motion Detection) when used with compatible cameras.​

• High Decoding Capability: Can decode up to 8 channels of 1080p video at 30 frames per second.​

• Dual Video Output: Provides simultaneous HDMI (up to 4K resolution) and VGA outputs.​

• Remote Access: Offers P2P remote surveillance and video playback on mobile devices via the DMSS app.​

• Third-Party Compatibility: Supports ONVIF and RTSP protocols for integration with various IP cameras.​

What’s in the Box

• Dahua NVR4108HS-8P-4KS2 Unit​

• Power Adapter​

• USB Mouse​

• User Manual​

• Mounting Accessories​

​

 Technical Specifications

• Video Inputs: 8 IP channels, supporting up to 8MP resolution.​

• Decoding Capability: 8 × 1080p@30 fps.​

• Video Outputs: 1 HDMI (up to 4K), 1 VGA.​

• Audio Inputs/Outputs: 1 RCA input, 1 RCA output.​

• Compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG.​

• Network Bandwidth: Access: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps.

• Storage: 1 SATA III port, supporting up to 10TB HDD.​

• USB Ports: 2 USB 2.0 ports (1 front, 1 rear).​

• Power Supply: DC 48V/53V, 2A/1.8A.​

• Power Consumption: <10W (without HDD).​

• PoE: 8 ports, total output power of 72W, maximum 25.5W per port.​

• Dimensions: 260mm × 232.5mm × 50.3mm (10.24″ × 9.15″ × 1.98″).​

• Weight: Net: 0.92 kg (2.03 lb); Gross: 2.07 kg (4.56 lb).

• Operating Conditions: –10°C to +55°C (14°F to 131°F); 10%–93% humidity.​

• Certifications: CE, FCC
