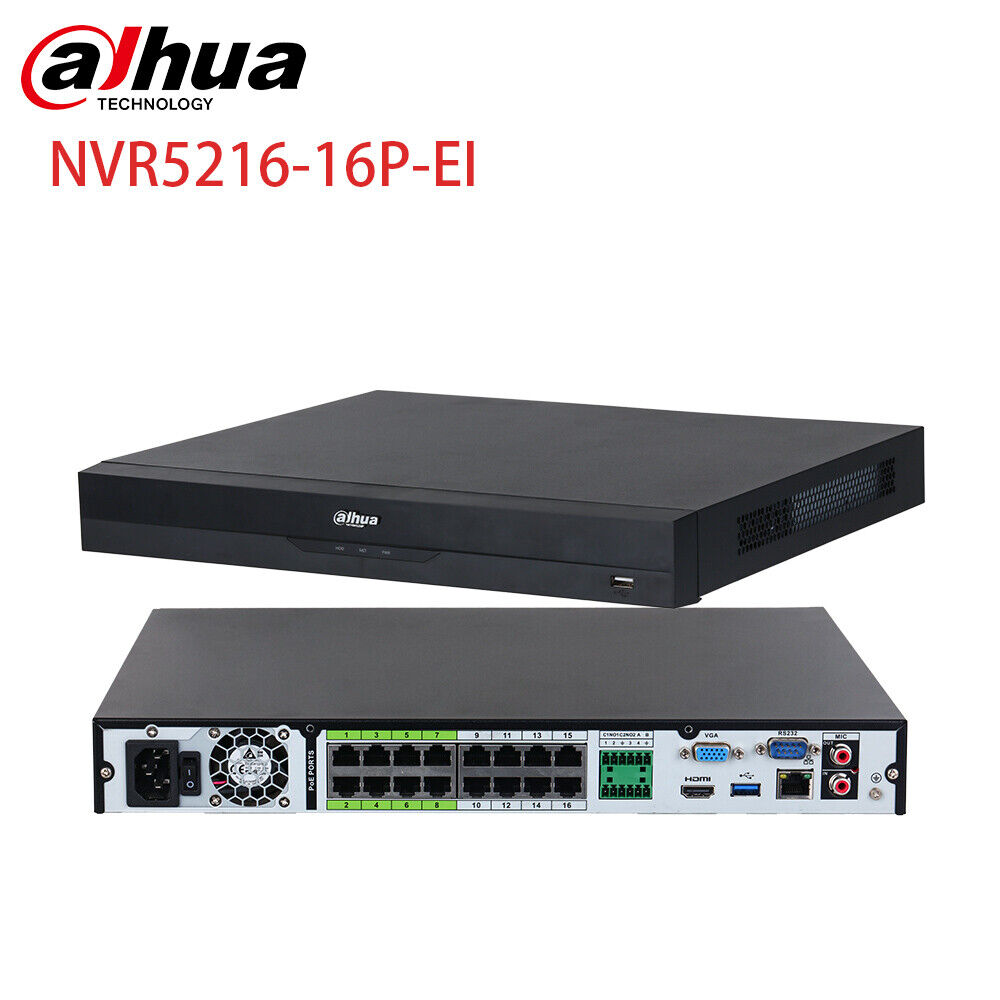

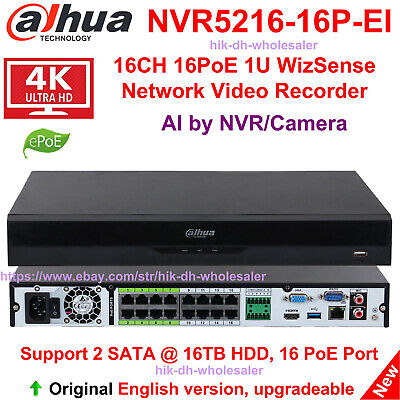

NVR5216-16P-I: 16-channel NVR with built-in 16 PoE ports and AI functions.

Key Features

• 16-Channel IP Video Access: Supports up to 16 IP cameras, each with resolutions up to 12MP, providing comprehensive coverage for various surveillance needs.​

• Integrated 16-Port PoE: Simplifies installation by delivering power and data over a single cable for each camera, with ports 1–8 supporting ePoE and EoC for extended transmission distances up to 800 meters.

• Advanced Video Compression: Utilizes Smart H.265+, H.265, Smart H.264+, and H.264 codecs to optimize storage efficiency without compromising video quality.​

• AI-Powered Analytics:

  • Perimeter Protection: Supports up to 16 channels for perimeter protection, enabling precise detection of intrusions and line-crossing events.

  • Face Recognition: Up to 4-channel video stream face recognition, capable of processing up to 24 face images per second and managing up to 20 face databases with a total of 100,000 face images.

  • Smart Motion Detection+: Enhances motion detection accuracy by focusing on human and vehicle targets, reducing false alarms.​

• High Decoding Capability: Supports up to 32 channels of 1080p decoding at 30 frames per second, ensuring smooth and detailed video playback. ​

• Robust Storage Options: Features two SATA III interfaces, each supporting up to 10TB HDDs, allowing for extensive video storage capacity.​

• Flexible Deployment: Can function as edge storage, central storage, or backup storage, adapting to various surveillance system architectures.

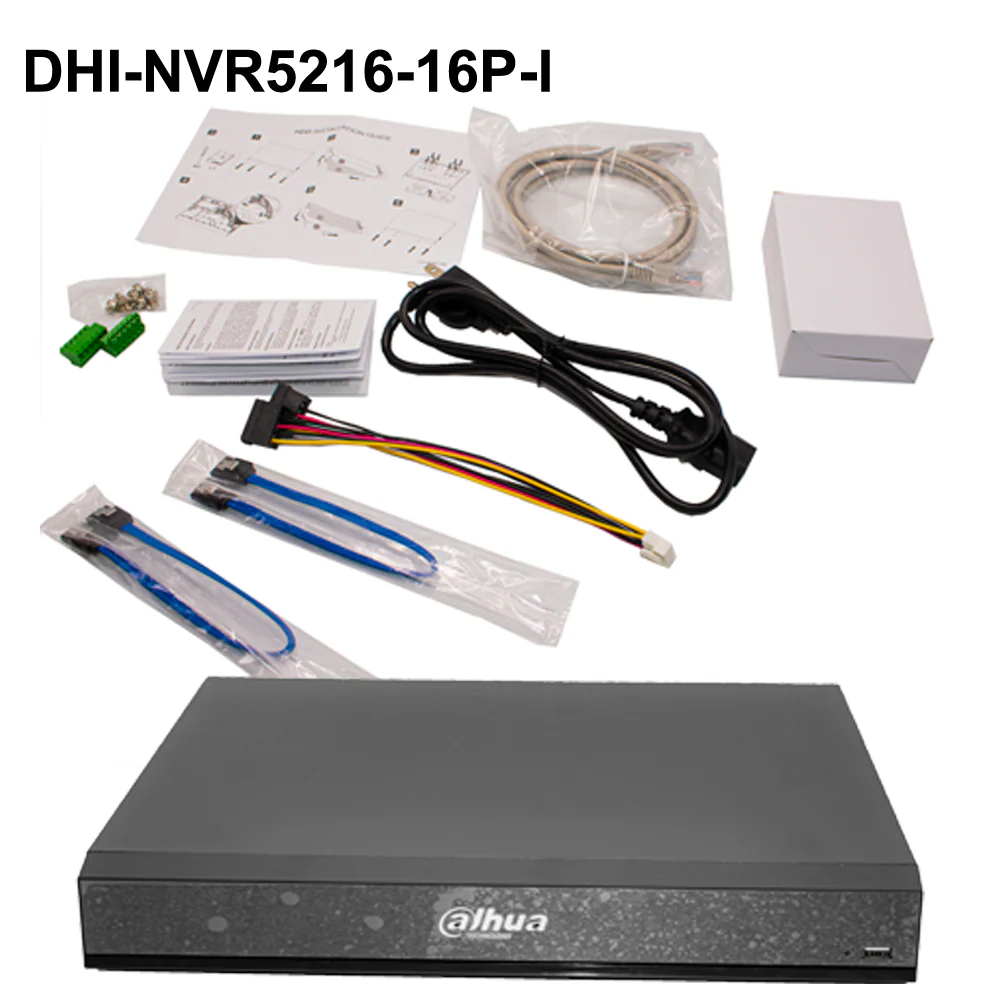

 What’s in the Box

• Dahua DHI-NVR5216-16P-I Unit​

• Power Adapter

• USB Mouse​

• User Manual​

• Mounting Accessories

Note: Hard drives are not included and must be purchased separately.​

 Technical Specifications

• Video Inputs: 16 IP channels, supporting up to 12MP resolution per channel.​

• Video Outputs: 1 HDMI and 1 VGA output, supporting simultaneous video output.​

• Audio Inputs/Outputs: 1 RCA input and 1 RCA output.​

• Decoding Capability: Up to 32 channels of 1080p@30fps or 16 channels of 4MP@30fps. ​

• Compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG.​

• Storage: 2 SATA III interfaces, each supporting up to 10TB HDDs.​

• Network Interface: 2 RJ-45 ports (10/100/1000 Mbps).​

• USB Ports: 2 USB 2.0 ports and 1 USB 3.0 port.​

• Power Supply: AC100–240V, 50/60Hz.​

• Power Consumption: <16.7W (without HDD).​

• PoE: 16 ports, total output power of 130W, maximum 25.5W per port.​

• Dimensions: 1U, 375mm × 327.5mm × 53mm (14.76″ × 12.89″ × 2.09″).​

• Weight: Approximately 3.5kg (7.72 lbs) without HDD.​

• Operating Conditions: –10°C to +55°C (14°F to 131°F); 10%–93% humidity.​

• Certifications: CE, FCC.
