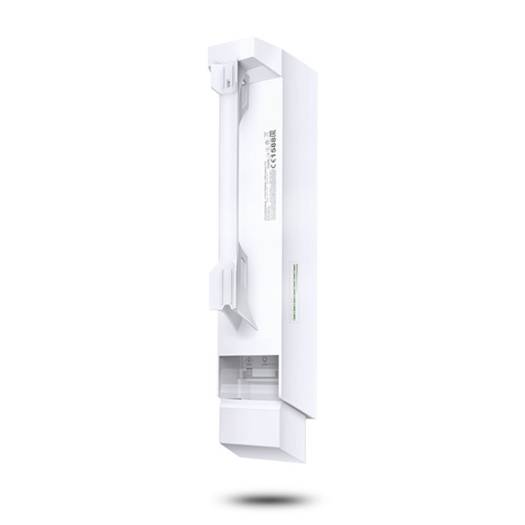

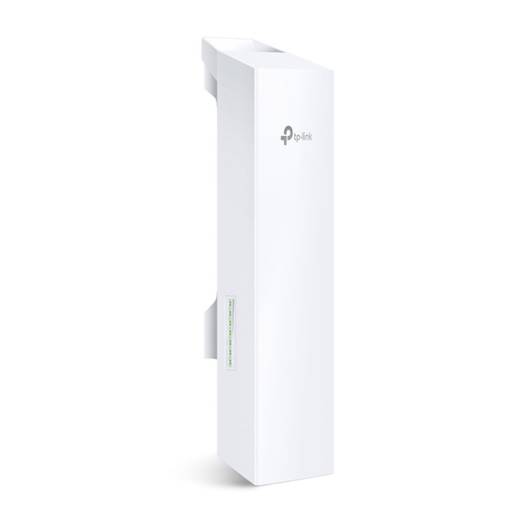

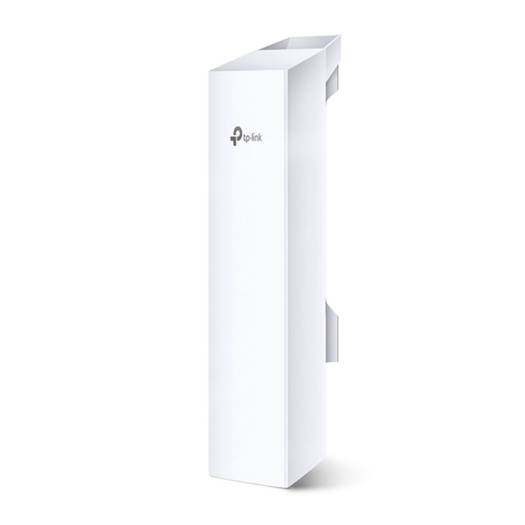

TP-Link CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE

Key Features:

• High-Gain Antenna: Equipped with a built-in 12dBi 2×2 dual-polarized directional MIMO antenna, optimizing signal strength and coverage.

• Adjustable Transmission Power: Offers transmission power control from 0 to 30dBm (up to 1000mW), allowing for flexible deployment based on specific requirements

• Long-Range Transmission: System-level optimizations facilitate wireless data transmission over distances greater than 13 kilometers, making it ideal for remote connectivity

• Pharos MAXtream TDMA Technology: Enhances throughput, capacity, and latency performance, especially beneficial in point-to-multipoint scenarios.

• Versatile Operation Modes: Supports multiple modes including Access Point, Client, Repeater, AP Router, and AP Client Router (WISP), catering to diverse networking needs.

• Centralized Management: Integrated with TP-Link’s Pharos Control software, enabling centralized management of multiple devices from a single interface.

• Durable Design: Features a weatherproof enclosure with 15KV ESD and 6KV lightning protection, ensuring reliable operation in various outdoor conditions.

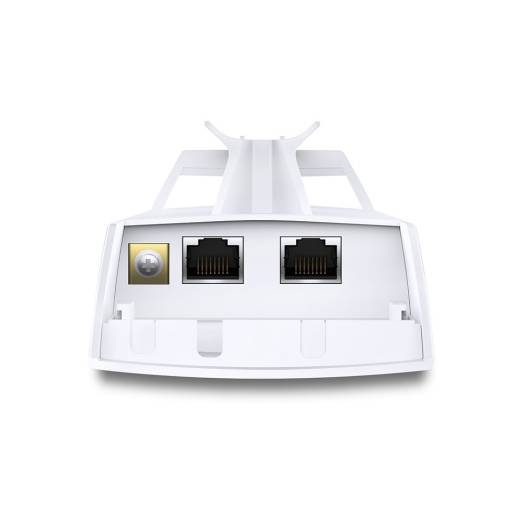

• Passive PoE Support: Simplifies installation by allowing both power and data transmission over a single Ethernet cable, supporting deployments up to 60 meters.

Specifications:

• Wireless Standards: IEEE 802.11b/g/n

• Frequency: 2.4GHz

• Maximum Wireless Speed: 300Mbps

• Antenna Beam Width: 60° (Horizontal), 30° (Vertical)

• Dimensions: 276 × 79 × 60 mm

• Operating Temperature: –40°C to 70°C

• Power Consumption: Maximum 10.8W

Ideal Applications:

• Wireless Internet Service Providers (WISPs): Delivering internet access to remote or underserved areas.

• Campus Networks: Extending network coverage across large educational or industrial campuses.

• Surveillance Systems: Providing connectivity for remote security cameras and monitoring systems.

• Rural Connectivity: Establishing reliable internet connections in rural or hard-to-reach locations.
