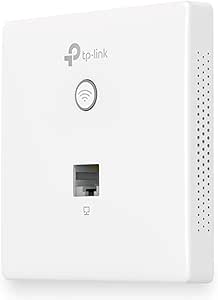

TP-Link EAP115-Wall 300Mbps Wireless N Wall-Plate Access Point

Key Features & Specifications

• Wireless Performance: Delivers up to 300 Mbps on the 2.4 GHz band, adhering to IEEE 802.11n/g/b standards.

• Ethernet Ports: Equipped with two 10/100 Mbps RJ-45 ports—one for uplink (with PoE support) and one for downlink, facilitating wired connections for devices like IP phones or PCs.

• Power Supply: Supports 802.3af Power over Ethernet (PoE), eliminating the need for separate power adapters.

• Coverage & Capacity: Provides wireless coverage up to 25㎡ (approximately 300 ft²) and supports over 100 concurrent clients.

• Antenna: Features internal dual 1.8 dBi omnidirectional antennas.

• Dimensions: Measures 86.8 × 86.8 × 30.2 mm, with a slim profile of just 11 mm.

• Management: Compatible with TP-Link’s Omada SDN platform, allowing centralized cloud management via Omada hardware controllers (OC200/OC300), software controller, or the Omada app.

• Security & Guest Access: Offers multiple authentication methods, including SMS, Facebook Wi-Fi, and vouchers, along with features like VLAN support, MAC filtering, and captive portal.

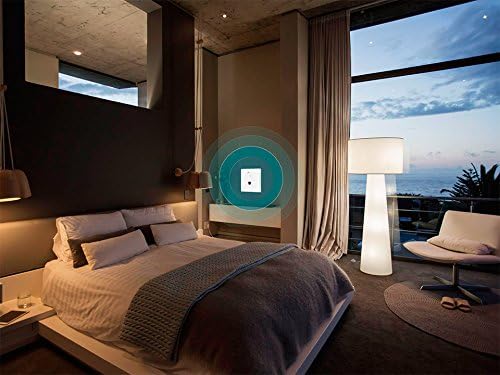

 Installation & Use Case

The EAP115-Wall is designed for effortless installation:

1. Detach the existing wall plate from the junction box.

2. Connect the in-wall Ethernet cable to the EAP’s uplink port.

3. Secure the access point to the wall using the provided screws.

4. Reattach the faceplate to complete the setup.
