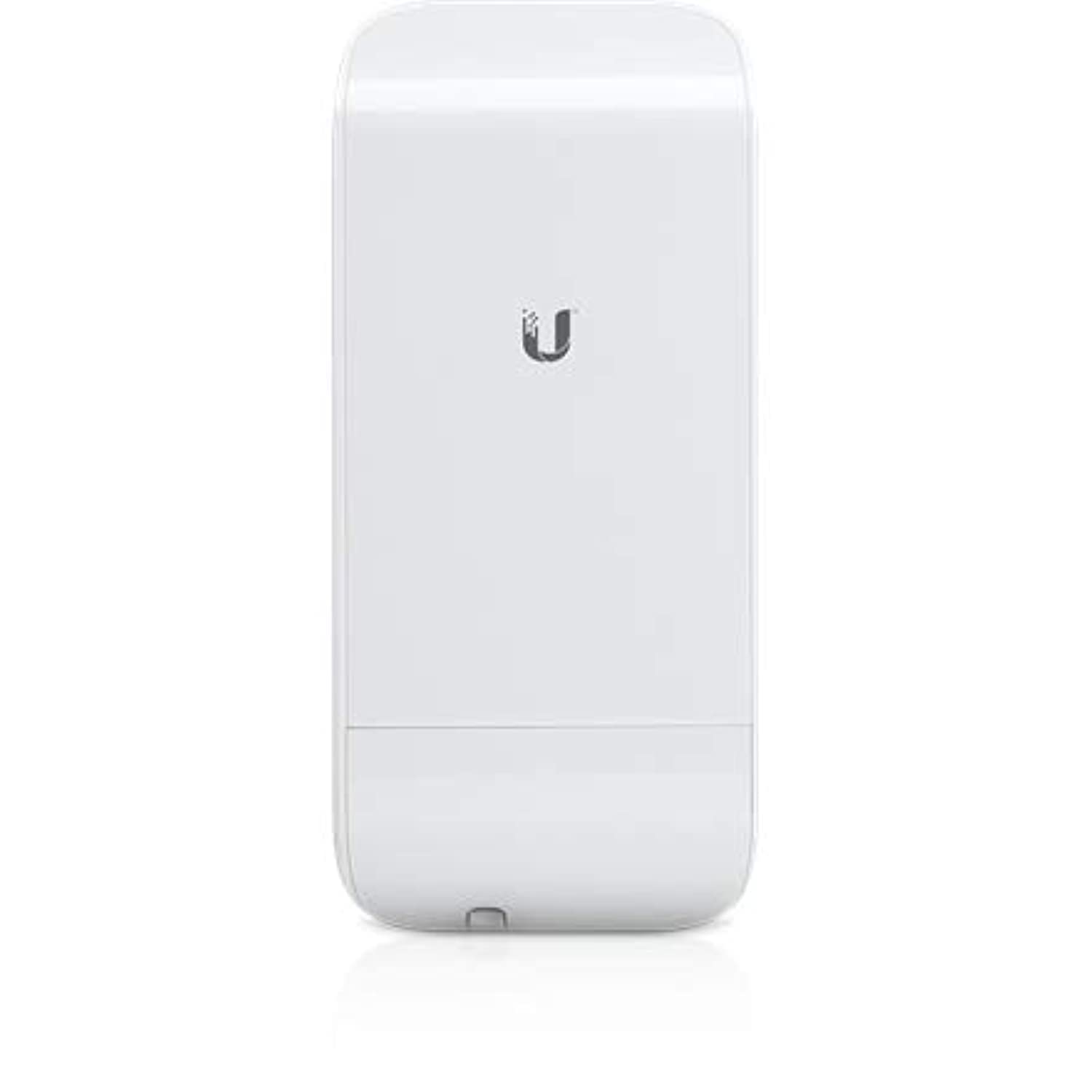

Ubiquiti Loco M2 NanoStation – 2.4GHz AirMAX Outdoor Access Point, Compact CPE

Key Specifications

• Frequency Band: 2.4 GHz (2412–2462 MHz)

• Antenna Gain: 8.5 dBi

• Throughput: 150+ Mbps real TCP/IP

• Range: Up to 5 km

• MIMO Configuration: 2×2 MIMO

• Networking Interface: 1 x 10/100 Mbps Ethernet port

• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)

• Power Supply: 24V, 0.5A PoE adapter (Included)

• Max. Power Consumption: 5.5W

• Processor: Atheros MIPS 24KC, 400 MHz

• Memory: 32 MB SDRAM, 8 MB Flash

• Enclosure: Outdoor UV-stabilized plastic

• Dimensions: 161 x 31 x 80 mm (6.3 x 1.2 x 3.2″)

• Weight: 180 g (6.4 oz)

• Mounting: Pole-mount kit included

• Operating Temperature: –30 to 75°C (-22 to 167°F)

• Operating Humidity: 5% to 95% noncondensing

• Certifications: FCC, IC, CE, RoHS

Features

• Integrated Design: Combines radio and antenna into a single compact unit for ease of installation.

• airMAX Technology: Utilizes Ubiquiti’s TDMA protocol to enhance network performance and scalability.

• Robust Construction: Designed to withstand harsh outdoor environments with UV-stabilized plastic and corrosion-resistant materials.

• Advanced Software: Managed via Ubiquiti’s airOS, offering intuitive configuration and monitoring.

 Pros

• High-gain antenna for long-distance connectivity.

• Compact and integrated design simplifies deployment.

• Robust construction suitable for various environmental conditions.
