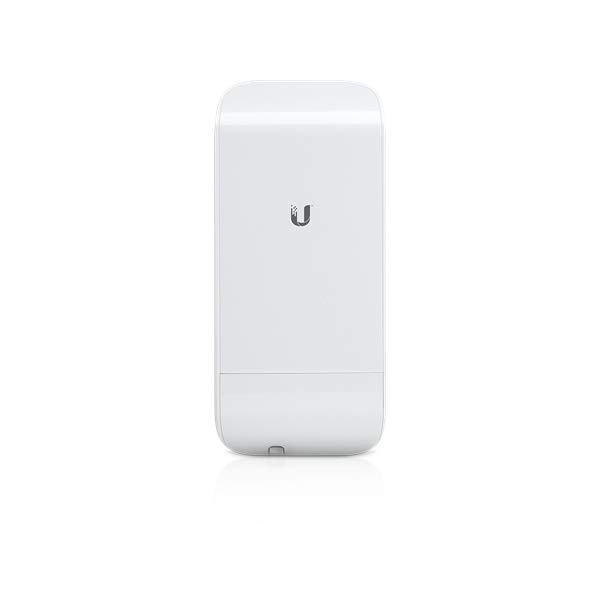

UBIQUITI NANOSTATION M2

Key Features

• Wireless Standard: 802.11b/g/n

• Frequency Range: 2.412 – 2.462 GHz

• Throughput: Up to 150 Mbps real outdoor throughput

• Range: Capable of links up to 13+ km

• Antenna Gain: 11 dBi dual-polarity panel antenna

• Beamwidth: 55° (horizontal), 53° (vertical), 27° (elevation)

• Polarization: Dual linear

• Networking Interfaces: 2 x 10/100 Mbps RJ45 Ethernet ports

• Processor: Atheros MIPS 24KC, 400 MHz

• Memory: 32 MB SDRAM, 8 MB Flash

• Power Method: Passive PoE (24V, 0.5A PoE adapter included)

• Power Consumption: Maximum 5.5W

• Operating Temperature: -30°C to 75°C (-22°F to 167°F)

• Enclosure: Outdoor UV-stabilized plastic

• Mounting: Pole-mount kit included

• Wireless Internet Service Providers (WISPs): Ideal for delivering broadband connectivity to remote areas.

• Campus and Enterprise Networks: Suitable for connecting multiple buildings or locations within a campus.

• Surveillance Systems: Provides reliable wireless backhaul for IP cameras.

• Event Connectivity: Offers temporary high-speed wireless links for events and gatherings.

 What’s in the Box

• NanoStation M2 unit

• Pole-mount kit

• 24V, 0.5A PoE adapter

• Quick start guide

The NanoStation M2 features Ubiquiti’s airMAX technology, which utilizes Time Division Multiple Access (TDMA) protocol to enhance network performance and scalability. Its compact form factor and integrated antenna design simplify installation and reduce deployment costs.
