Ubiquiti NanoStation M5 (NSM5) – 5GHz 16dBi Outdoor Wireless CPE | 150+ Mbps | 15+ km Range

Key Specifications

• Frequency Band: 5 GHz

• Antenna Gain: 16 dBi dual-polarity

• Throughput: 150+ Mbps real outdoor throughput

• Range: 15+ km

• MIMO Configuration: 2×2 MIMO

• Networking Interface: 2 x 10/100 Mbps Ethernet ports

• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)

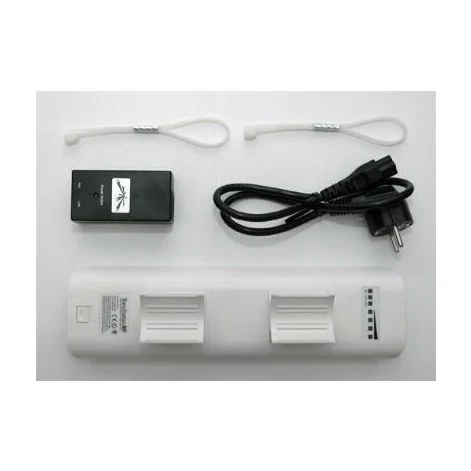

• Power Supply: 24V, 0.5A PoE adapter (Included)

• Max. Power Consumption: 8W

• Dimensions: 294 x 31 x 80 mm (11.6 x 1.3 x 3.2″)

• Weight: 400 g (14.1 oz)

• Enclosure: Outdoor UV-stabilized plastic

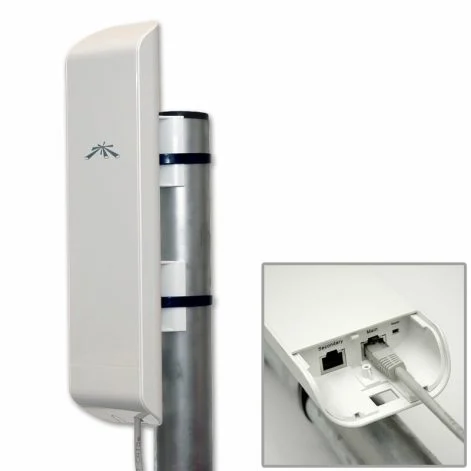

• Mounting: Pole-mount kit included

• Operating Temperature: –30 to 75°C (-22 to 167°F)

• Operating Humidity: 5% to 95% noncondensing

Features

• Integrated AirMax Technology: Utilizes Ubiquiti’s TDMA protocol to enhance network performance and scalability.

• Dual Ethernet Ports: Secondary Ethernet port with software-enabled PoE output for seamless IP video integration.

• Compact Form Factor: Sleek design with a small footprint for versatile deployment options.

Pros:

• High-gain antenna for long-distance connectivity.

• Dual Ethernet ports for flexible networking options.

• Robust design suitable for harsh outdoor environments.
