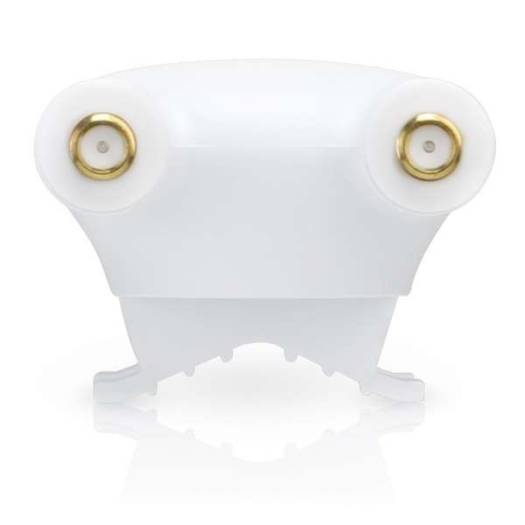

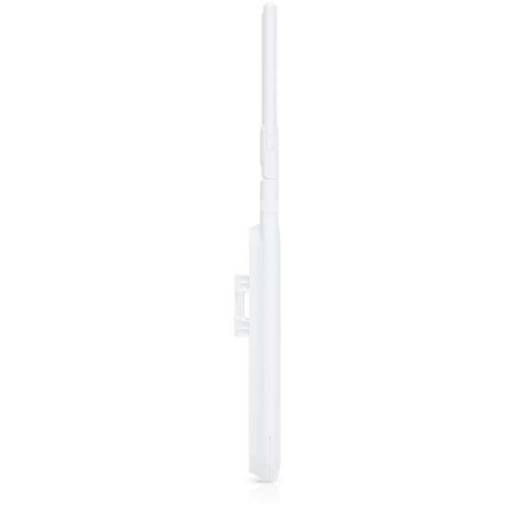

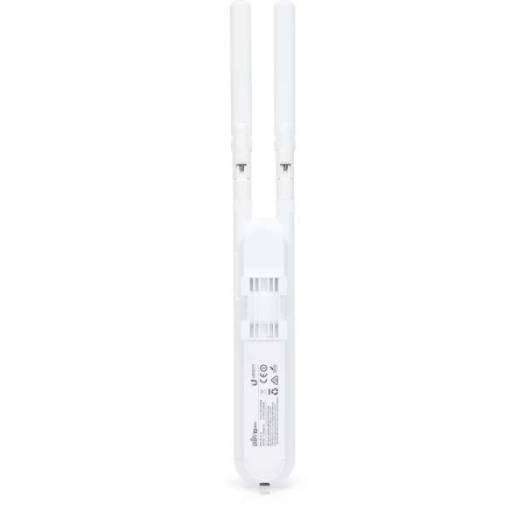

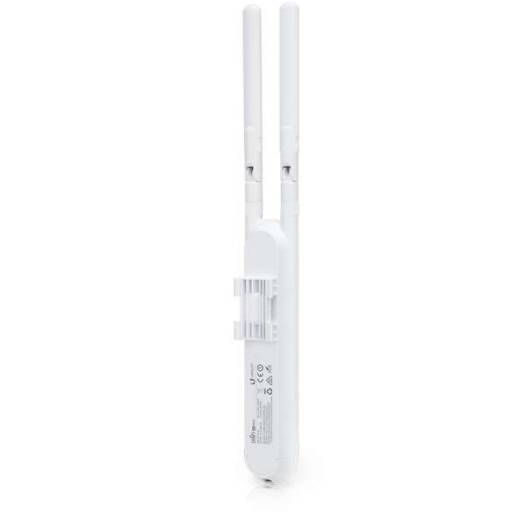

Ubiquiti UniFi AC Mesh Access Point (UAP-AC-M)

Key Specifications

• Wi-Fi Standard: 802.11ac (Wi-Fi 5)

• MIMO Configuration: 2×2 MIMO on both 2.4 GHz and 5 GHz bands

• Maximum Throughput:

  • 2.4 GHz: Up to 300 Mbps

  • 5 GHz: Up to 867 Mbps

• Aggregate Data Rate: Up to 1.1 Gbps

• Coverage Area: Approximately 140 m² (1,500 ft²)

• Client Capacity: Supports 200+ concurrent clients

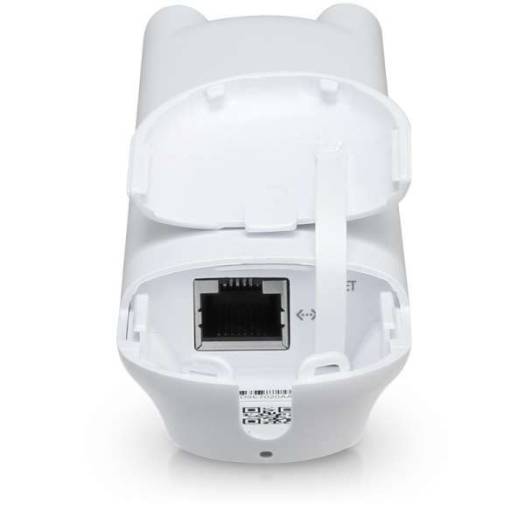

• Ethernet Ports: 1 x Gigabit Ethernet

• Power Method: 802.3af PoE or 24V Passive PoE

• Maximum Power Consumption: 8.5W

• Dimensions: 353 x 46 x 34.4 mm (13.9 x 1.8 x 1.4″)

• Weight: 152 g (5.36 oz) with antennas

• Mounting Options: Wall, pole, or fast-mount (kits included)

• Weather Resistance: IPX4-rated for outdoor use

Pros

• Compact and lightweight design suitable for various installations.

• Dual-band support with high throughput for reliable performance.

• Weather-resistant enclosure allows for outdoor deployments.

• Flexible mounting options with included kits.

• Supports mesh networking for scalable coverage.
